How to correctly assemble bathroom furniture
CUBRO bathroom furniture, both in WOOD and LACA finishes, share a mounting system designed to make installation easier. While they have a similar general structure, there are important differences in the following aspects:
-
Cut-out of the first drawer: the LACA model includes a cut-out, allowing the use of any siphon model.
-
Wall mounting brackets
-
Drawer and front panel adjustment systems
Before you begin
-
Hire a professional to install the water inlets and drains.
-
The wall must be reinforced.
-
Secure the furniture firmly to the wall to ensure stability and safety.
-
Do not mix components from different ranges, as the mounting and adjustment systems are different.
Tools and materials needed
Make sure you have the following tools, which are not included in the package:
-
Drill
-
Screws and wall plugs to fix to the wall
-
Screwdriver
-
Level
-
Hammer
-
Pencil
- Measuring tape
Wall brackets are included, though they differ depending on the range.
Installation
1. Fixing the unit to the wall
-
Mark the bracket positions on the wall with a pencil. The correct measurement is the total width of the unit minus 38 mm.
-
Drill the holes and insert plugs and screws.
-
Hang the unit (without drawers) on the brackets. To remove it, press the shaft release hole.
2. Adjusting the unit and drawers
-
Use a screwdriver to adjust the unit’s position.
-
Drawers come pre-assembled but may need fine adjustment.
-

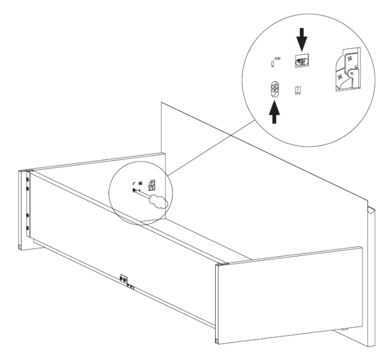

The front fixing system allows simple adjustments without special tools.
- If you need to remove the front, operate the lower plastic plate that releases the front from the bottom of the drawer.
3. Installing the basin
Integrated basin:
-
Apply silicone to the top edges of the unit.
-
Place the basin and let it dry.
Countertop basin:
-
Make the drain hole (see the cut-out guide).
-
Position the countertop and fix it using the included screws.
👉 For WOOD bathroom furniture, click here
❌ Products not included
-
Tap: universal. Choose whichever you prefer, depending on whether the basin requires a deck-mounted or wall-mounted tap.
- Siphon or drain: you can use any universal model, since the drawer is recessed.
-
Waste or plug: universal, but check compatibility with the basin’s hole diameter (Ø). We recommend an IKEA model.
