Plantea, Line, Superline, Curve
Our fronts are shipped without the drillings, so you can choose their location according to your preference. Installation is very simple and is done during assembly.

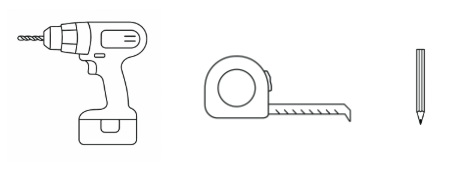

Tools required
- Screwdriver
- Awl
- Measuring tape
- Drill
- IKEA Positioning Guide or similar
Installation
Both vertical and horizontal locations are valid. We recommend:
- Vertical position for refrigerator doors, base and wall units.
- Horizontal position for dishwasher doors and drawers.
- Position the guide on the workpiece
- Select the ideal distance with the guide for use on all faces.
- Mark the position of the screw with the punch
- On a flat surface, drill a small hole with the drill. Use a 2 mm drill bit.
- Place the handle. Screw it on with a screwdriver.
Plantea Case
Horizontal position for drawers
-png-1.png?width=300&height=447&name=image%20(8)-png-1.png)
Vertical position
Placement on adjacent doors
The handles should be at different heights so that they do not collide when closing the doors.
You can check our catalog of handles in different colors in our e-commerce.
